Product Description

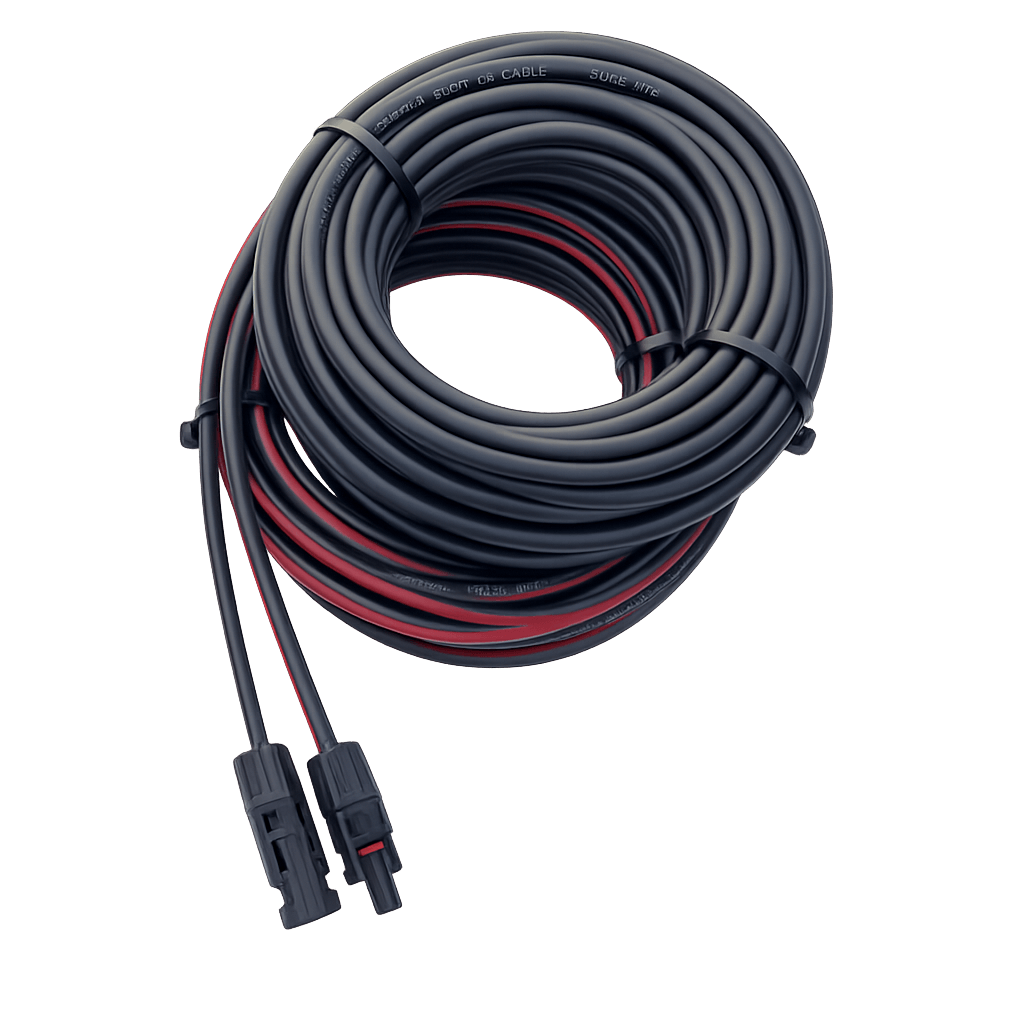

Cabling set used in solar installations is a critical component that ensures efficient and safe transmission of electrical energy between system parts.

These cables are designed to handle high DC voltages, UV exposure, and outdoor environmental stress while maintaining minimal power loss.

Key Benefits

Solar PV (Photovoltaic) Cable Connects solar panels to the combiner box or inverter

• Rated for up to 1,500 V DC

• Cross-linked polyethylene (XLPE) or halogen-free insulation

• UV, ozone, and weather resistant

• Tinned copper conductors for corrosion protection

Engineering Considerations

• Cable Sizing: Determined by current rating, voltage drop (< 3%), and distance between components.
• Connector Types: MC4 connectors for PV cables, ring lugs for batteries, and screw terminals for inverter connections.
• Routing: Cables are run in conduits or cable trays to prevent mechanical damage and maintain aesthetics.
• Testing: Insulation resistance and continuity tests are performed before commissioning.
